Perimeter S960 Series

LED perimeter display

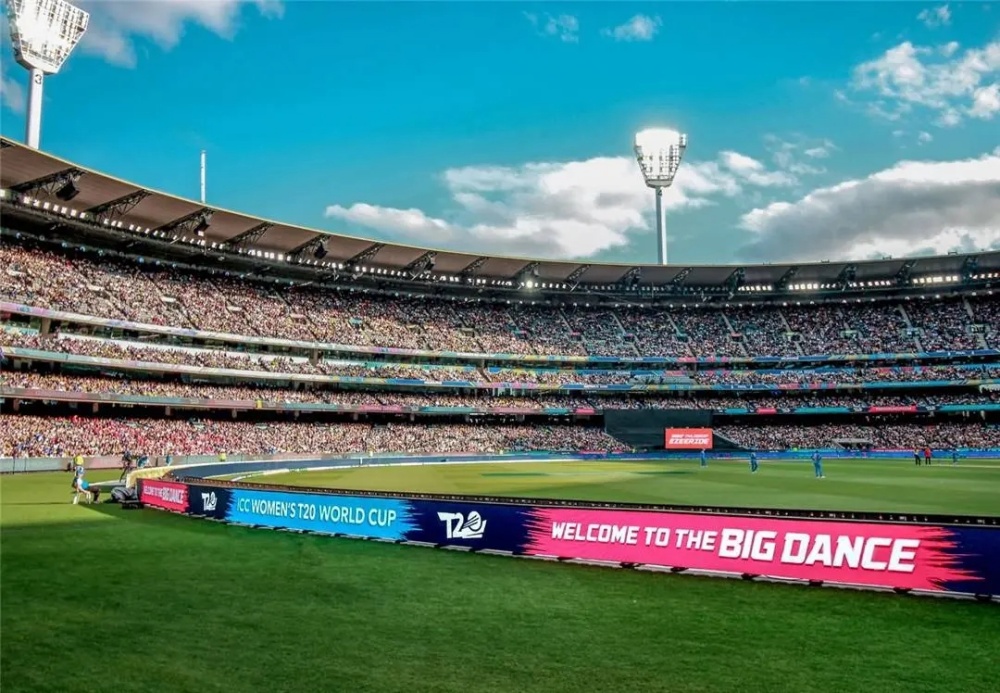

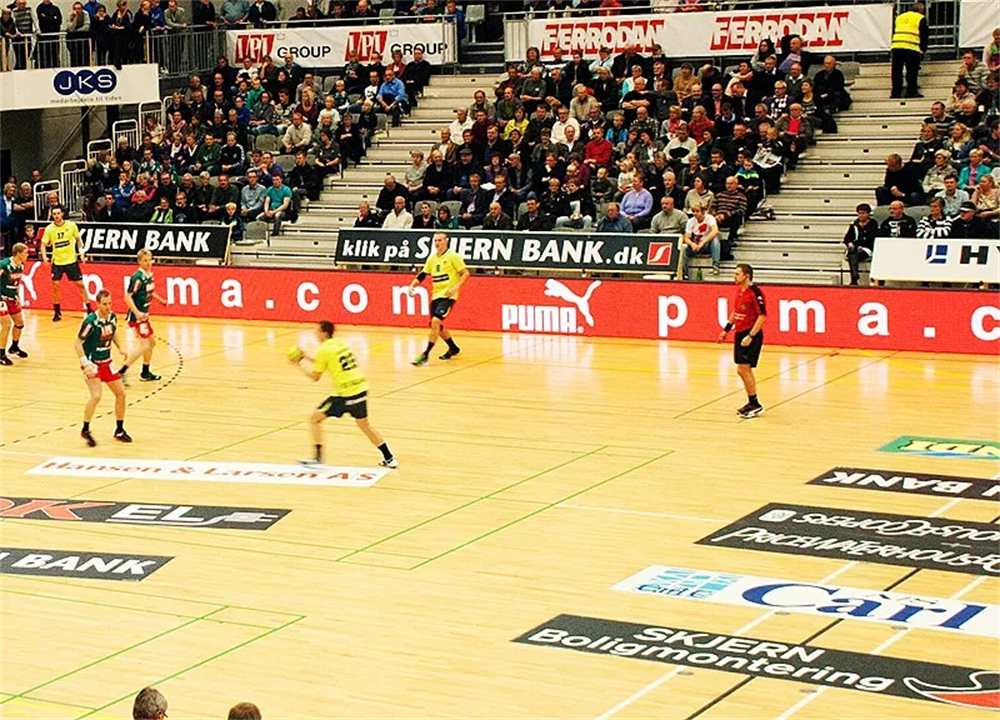

In the sports field, perimeter display is an economical and beautiful show. It's the best for live broadcasting and television commercials.

 sports LED

Features:

Reliable Protection and Flexible Adjustment

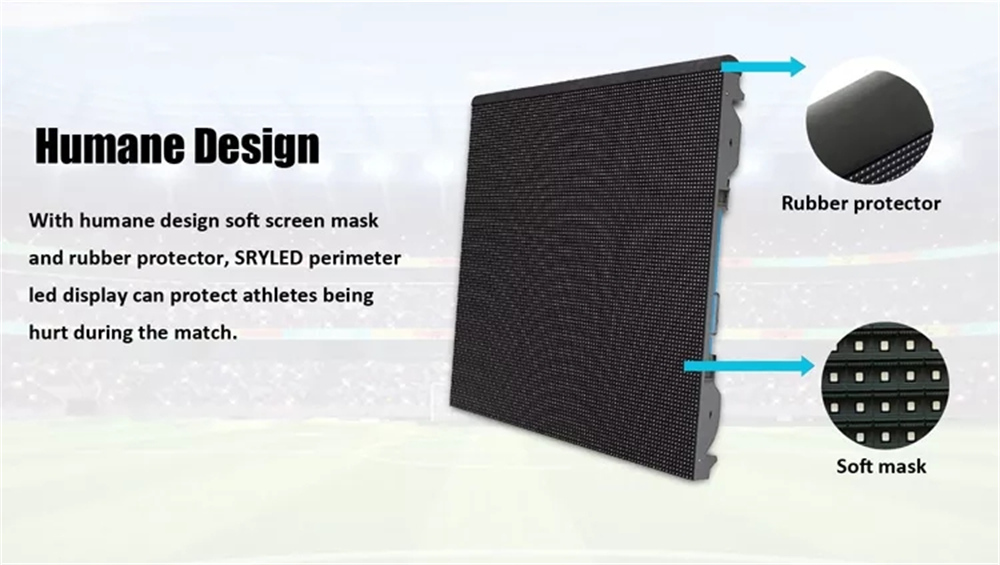

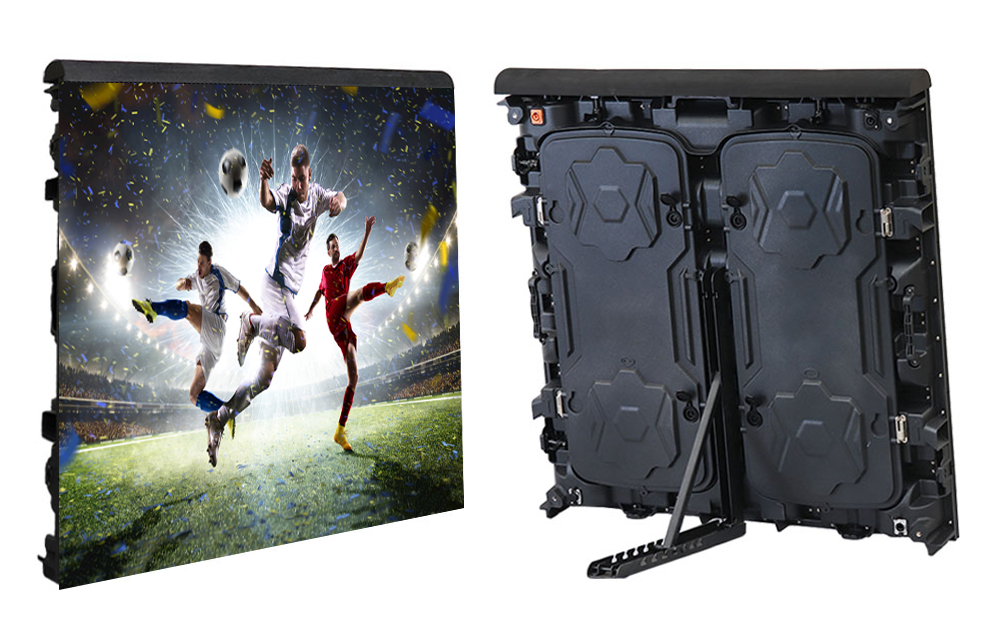

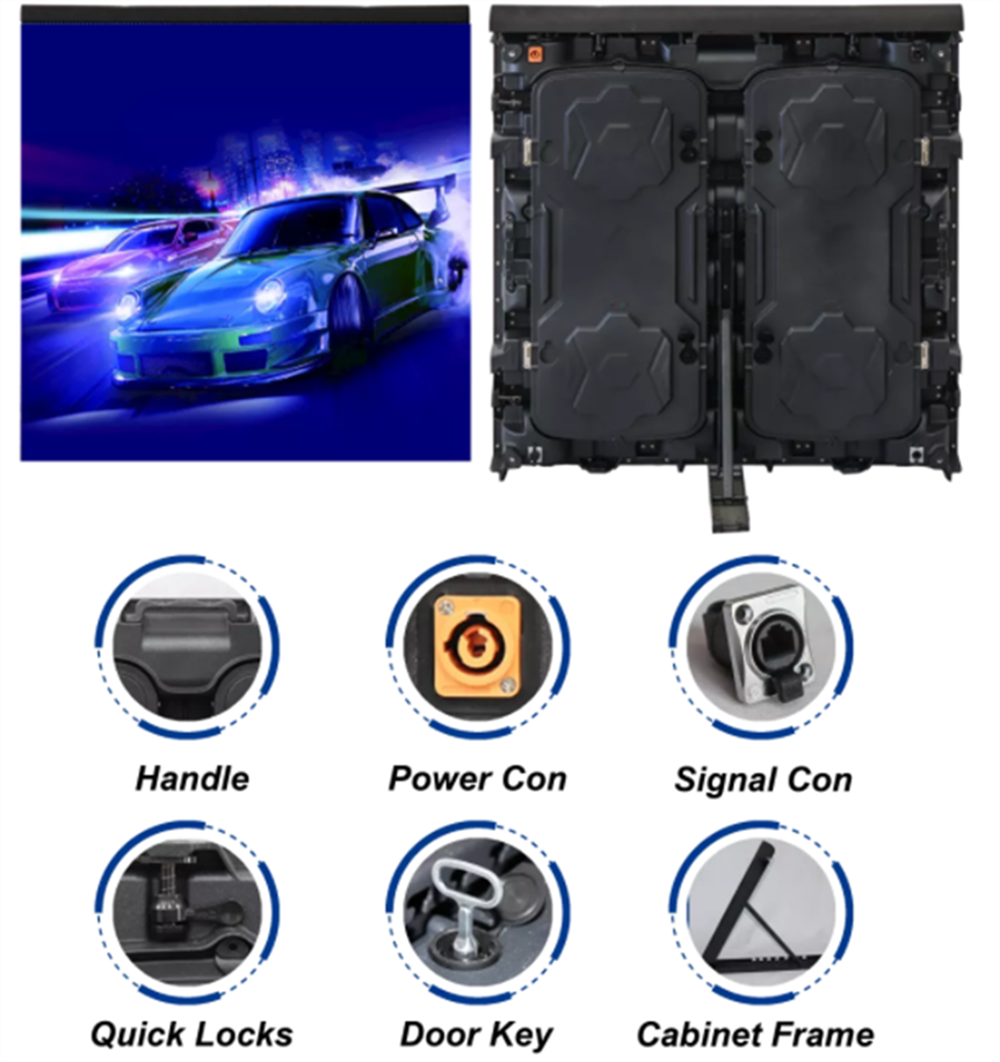

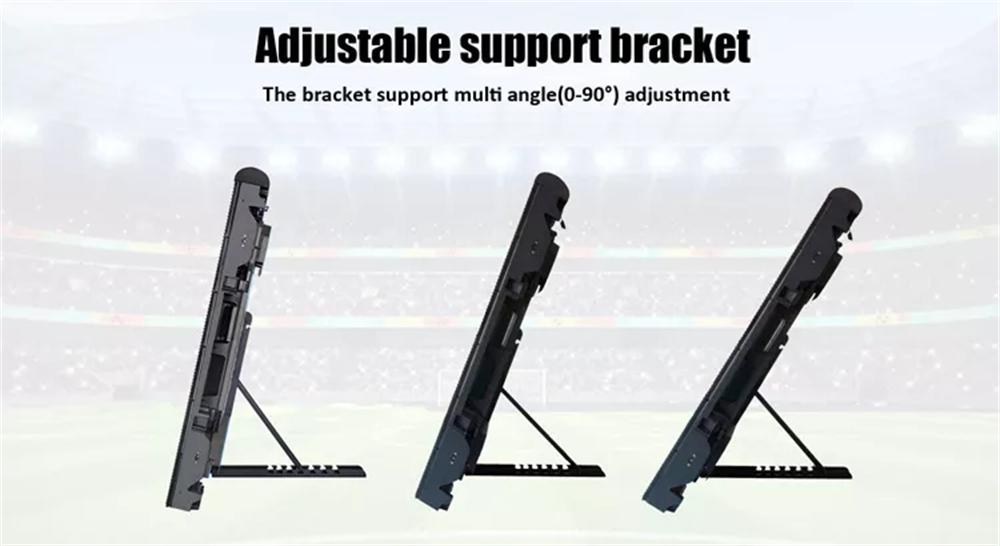

The main difference between perimeter led screen and the other series is perimeter led screen has soft plastic mask to protect the players from injury when they hit the screen in the stadium by accident. It has a back supporting stand for adjusting the screen to different viewing angle.



2.Excellent Visual Effect

With the high brightness (up to 10,000nits), high refresh rate(up to 3840Hz) and gray scale(up to 14bits), the stadium LED screen can bring us amazing visual effects no matter indoors or outdoors.



3.Stable Performance

We use high-quality SMD LED and excellent PCB design, the perimeter led screen can bring you the HD picture performance indoors or outdoors.



Since we use high-quality SMD LED and excellent PCB design, the screen can bring you the HD picture performance indoors or outdoors. The pitches options: P6.67, P8, P10.

Item

P6.67

P8

P10

Pixel Pitch

6.67mm

8mm

10mm

LED Type

SMD2727

SMD3535

SMD3535

Driving Mode

1/6scan

1/5scan

1/2scan

Module Size

320mm × 160mm

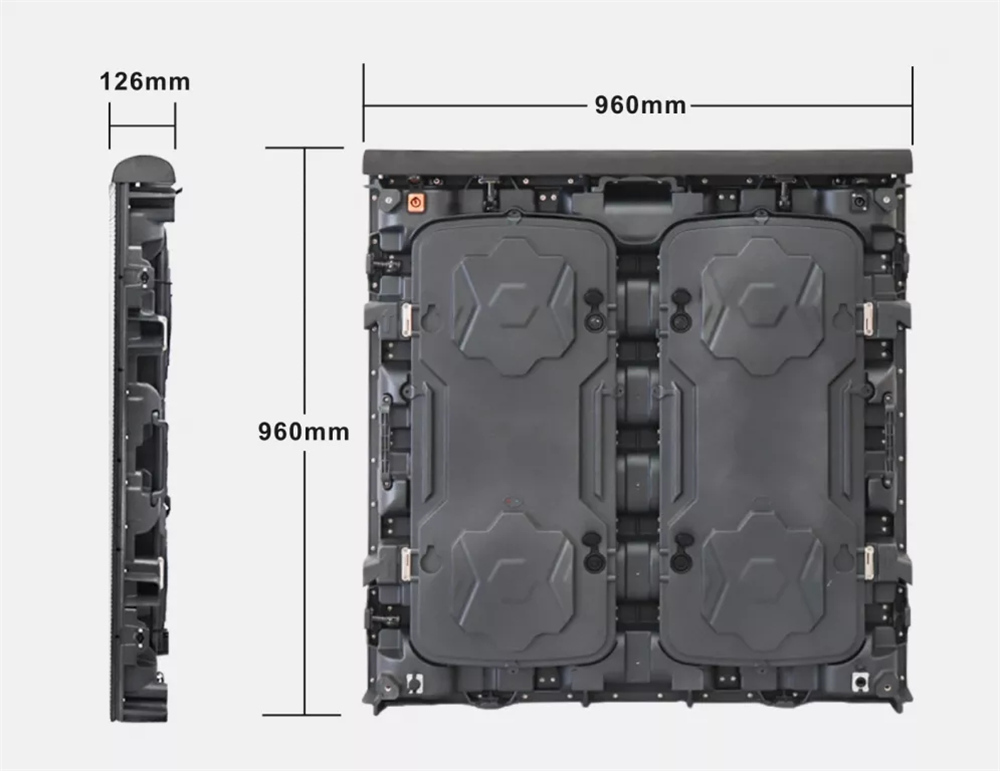

Cabinet Size

960mm × 960mm

Minimum Viewing Distance

≥6m

≥8m

≥10m

Brightness

6,000nits

Refresh Rate

1,920Hz~3,840Hz

1,920Hz~3,840Hz

1,920Hz~3,840Hz

Max Power

900W/㎡

900W/㎡

1000W/㎡

Input Voltage

AC110V/ 220V

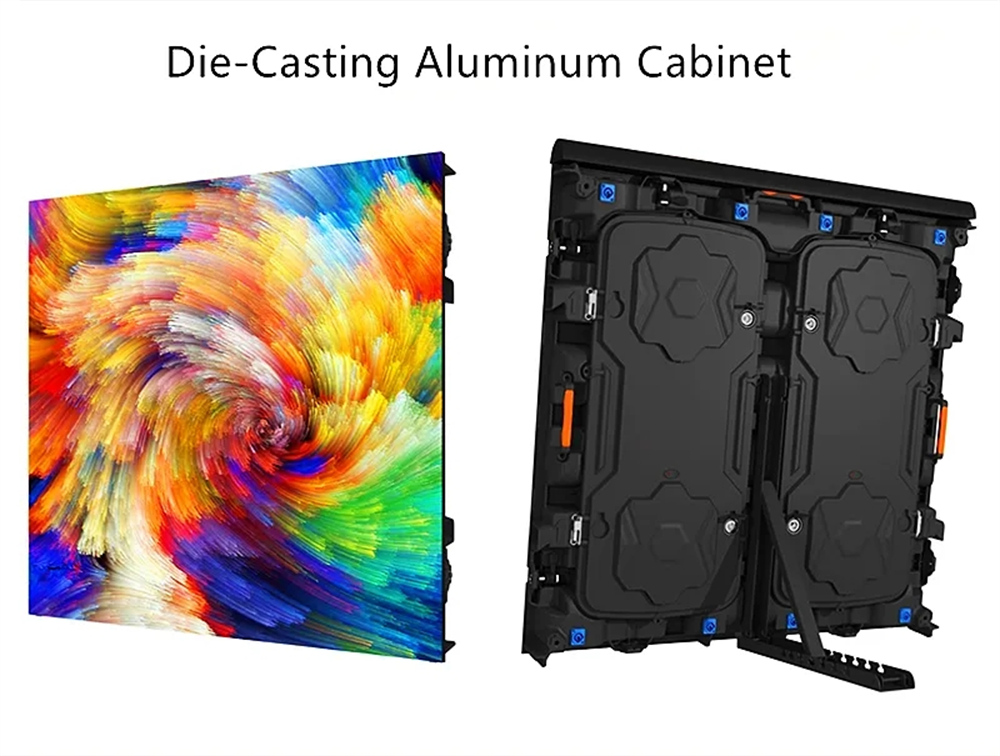

Cabinet materials

Die-casting Aluminum

Cabinet Weight

30kg/panel

Signal Source Compatibility

DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.


sports LED


sports LED

sports LED

sports LED

sports LED
