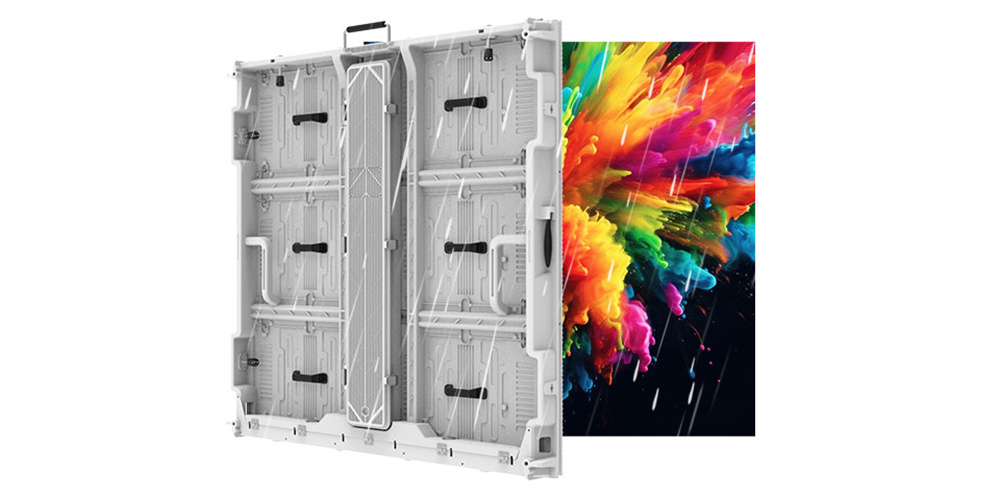

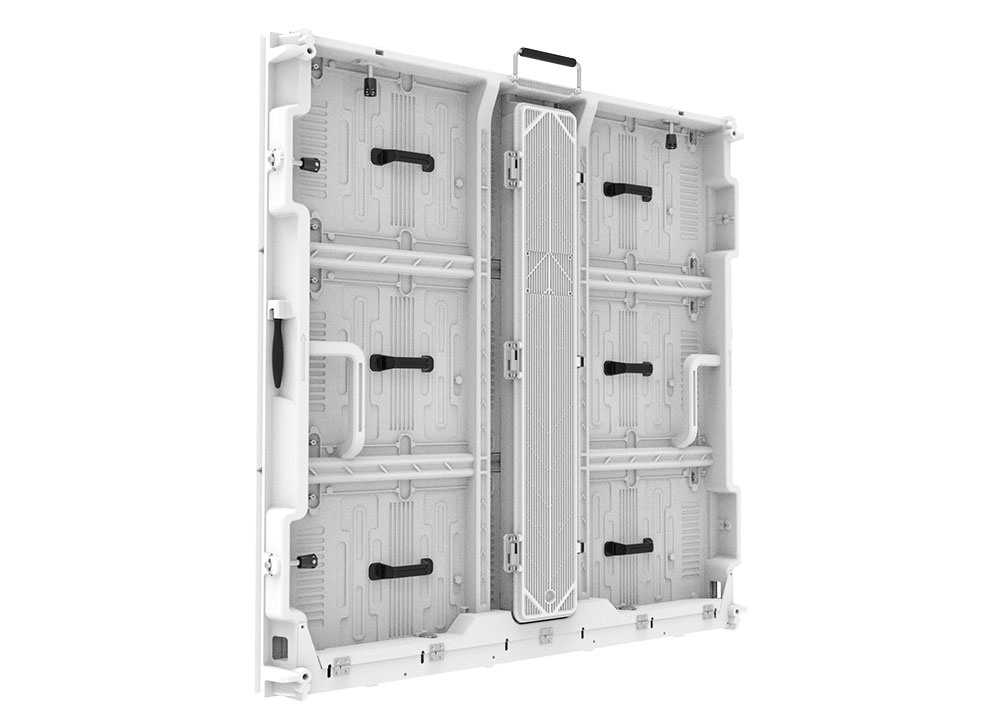

Outdoor E960 Series is a display very Energy-saving in outdoor, with fanless and screwless design, easy installation, lots of using on building facade projects
1. Energy saving, 650W/sqm
2. Great heat dissipation, no fans or air conditioner needed

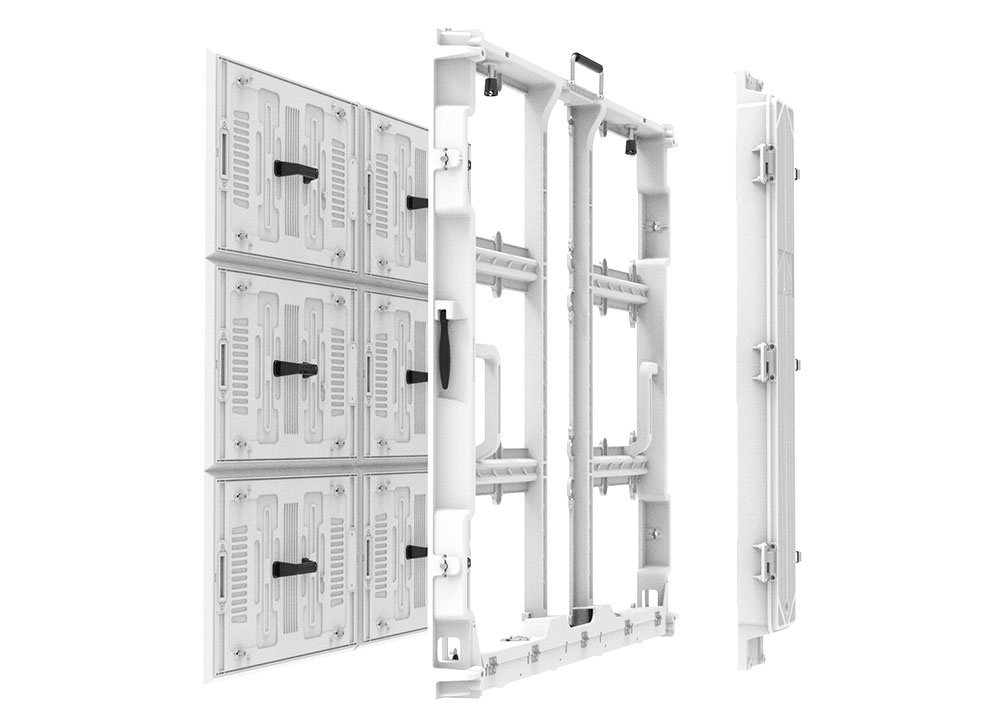

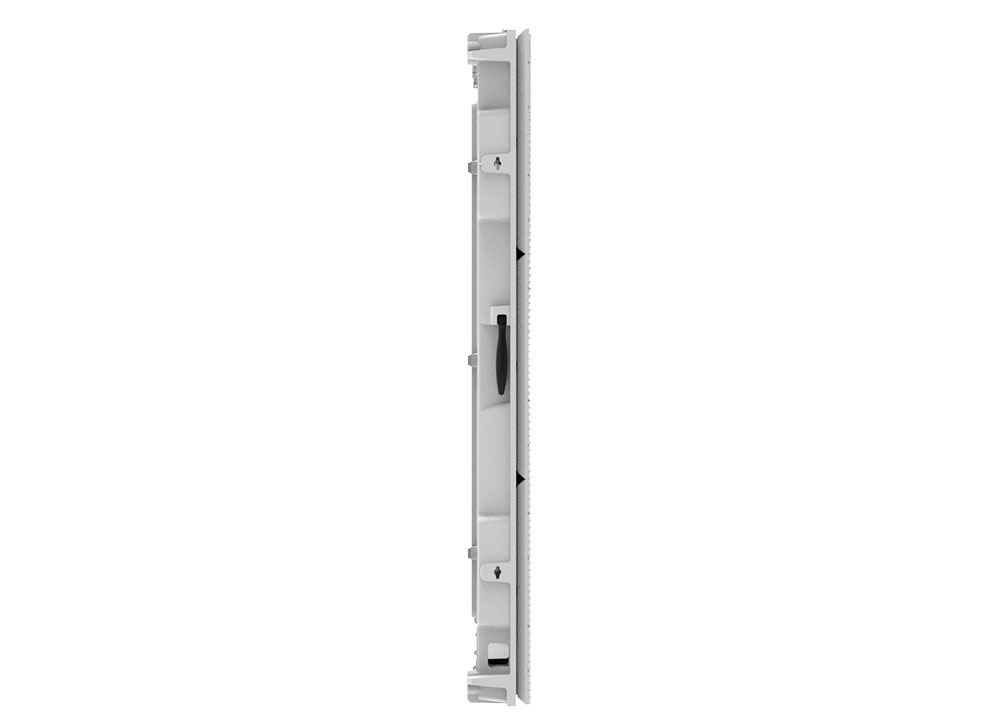

3. Slim & lightweight, but super strong construction

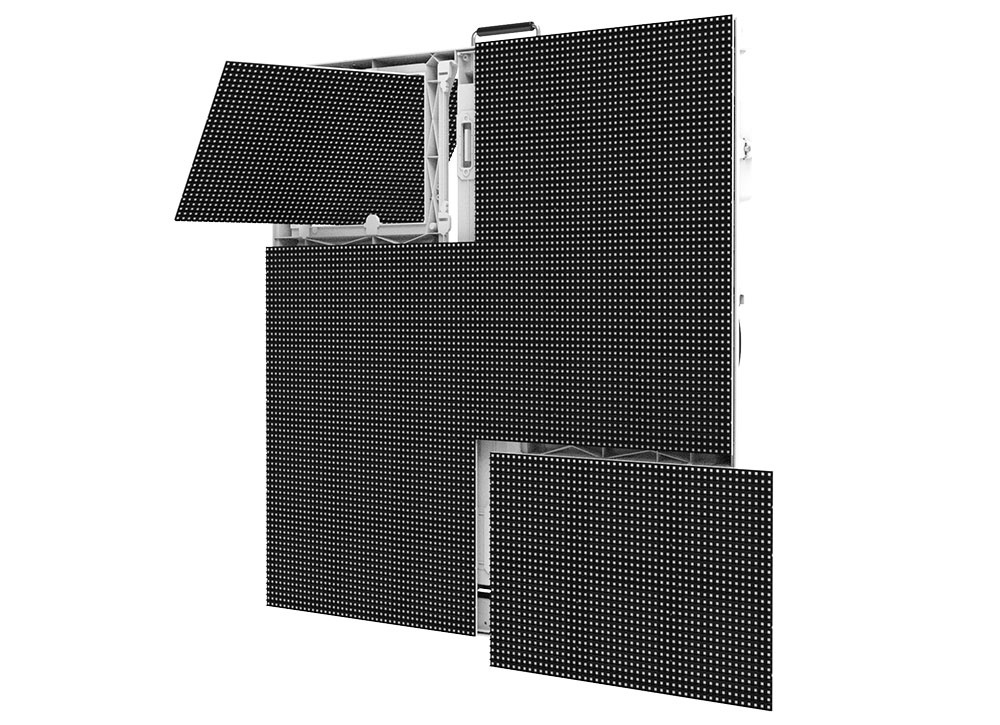

4. Front & Rear dual-service
5. Can custom-make to 13000nit brightness

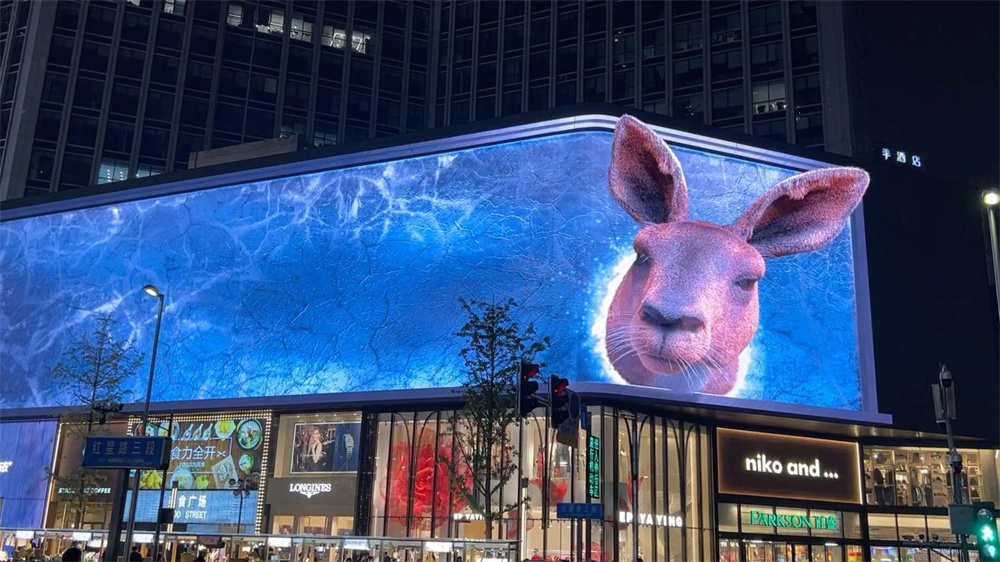

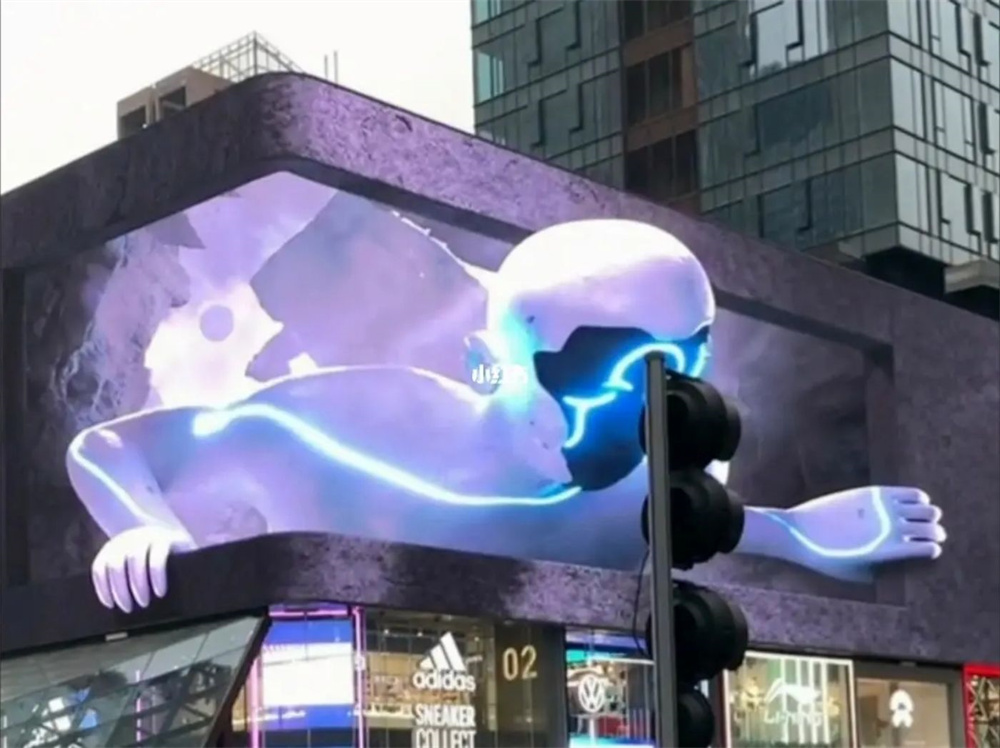

Applications: LED billboard, airport led video wall, transportation led display, outdoor commercial led screen, shopping mall led display, railway led signage, outdoor digital signage ,and so on.
Pixel Pitch | 5.7mm | 6.67mm | 8mm | 10mm |
Pixel configuration | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
Module resolution | 32L * 32H | 48L * 24H | 40L * 20H | 32L * 16H |
Pixel density(pixel/㎡) | 30,625 dots/㎡ | 22,497 dots/㎡ | 15,625 dots/㎡ | 10,000 dots/㎡ |
Module size | 480mmL * 320mmH | 480mmL * 320mmH | 480mmL * 320mmH | 480mmL * 320mmH |
Cabinet size | 960x960mm | 960x960mm | 960x960mm | 960x960mm |
Cabinet Resolution | 168L * 168H | 144L * 144H | 120L * 120H | 96L * 96H |
Avg power consumption(w/㎡) | 200W | 200W | 200W | 200W |
Max power consumption(w/㎡) | 600W | 600W | 600W | 600W |
Cabinet material | Aluminum | Aluminum | Aluminum | Aluminum |
Cabinet Weight | 23kg | 23kg | 23kg | 23kg |
Viewing angle | 140° /120° | 140° /120° | 140° /120° | 140° /120° |
Maintenance type | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
Protecting level | IP67 | IP67 | IP67 | IP67 |
Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
Color processing | 14bit-16bit | 14bit-16bit | 14bit-16bit | 14bit-16bit |
Working voltage | AC100-240V±10％， | AC100-240V±10％， | AC100-240V±10％， | AC100-240V±10％， |
Brightness | ≥6000cd | ≥6000cd | ≥6000cd | ≥6000cd |
Lifetime | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
Working temperature | ﹣20℃～60℃ | ﹣20℃～60℃ | ﹣20℃～60℃ | ﹣20℃～60℃ |
Working humidity | 10%～90%RH | 10%～90%RH | 10%～90%RH | 10%～90%RH |
Control system | Novastar | Novastar | Novastar | Novastar |
