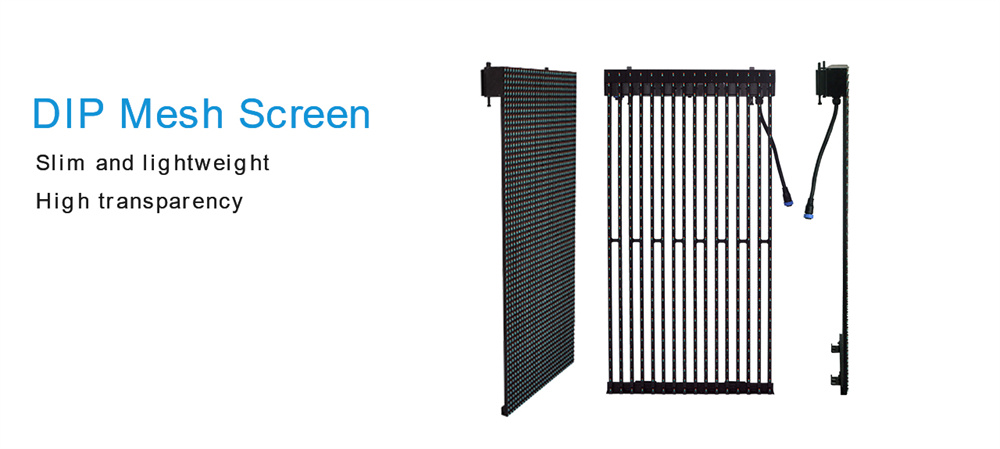

Mesh Series

LED Mesh display (Curtain display) is especially designed for outdoor big size LED billboard, compared to traditional LED outdoor display, mesh display is less weight and slim, easy installation and save lots of frameworks, and less power consumption, super brightness. dynamic and vivid visuals effect. P10-P50 for options, front & back dual-service.

 Mesh Series

Widely used on outside of building facade, highway advertising etc.

Pixel pitchP15.625-15.625P16.67-16.67P20-20P25-25P15.625-31.25mm
(V:15.625mm, H:31.25mm)
Pixel configurationFortune DIP346
Pixel Density (pixels/㎡)4,096 3,600 2,500 1,600 2,048 1,024
Driving ICMBI5120MBI5120MBI5120MBI5120MBI5120MBI5120
Driving typeStaticStaticStaticStaticStaticStatic
Module size/ lamp strip1000mm1000mm1000mm1000mm1000mm1000mm

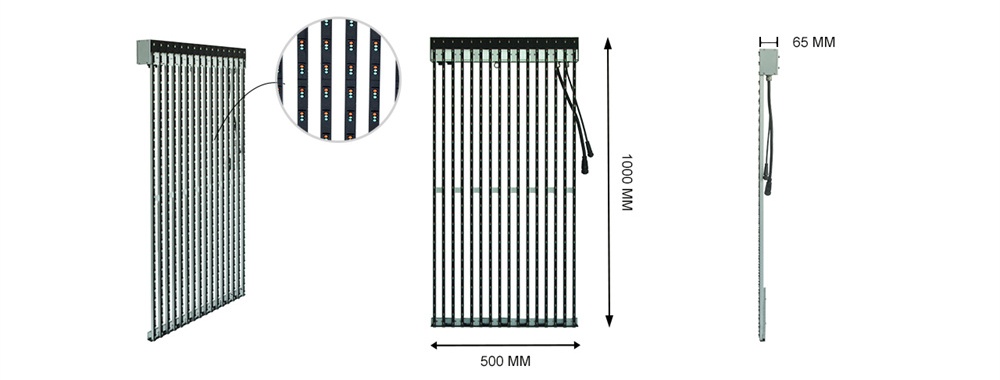

Cabinet Size500*1000mm
Cabinet resolution32*6460*6025*5020*4016*6416*32
Cabinet materialAluminum profile
Cabinet  Weight18kg/㎡18kg/㎡14kg/㎡14kg/㎡13kg/㎡13kg/㎡
Max Power Consumption400w/㎡350w/㎡380w/㎡300w/㎡360w/㎡200w/㎡
Viewing AngleH: 120°/ V:60°
Color grayscale14bit
Refresh rate3840HZ
Power supplyRx. Power 200W
Input Voltage110V/ 220V AC, 50~60HZ
IP ProtectionIP67
Fire ratingV0
Wind resistance performance12 force
CertificationCCC, CE, RoHs
